Chauvet Ovation E-260CW Rental

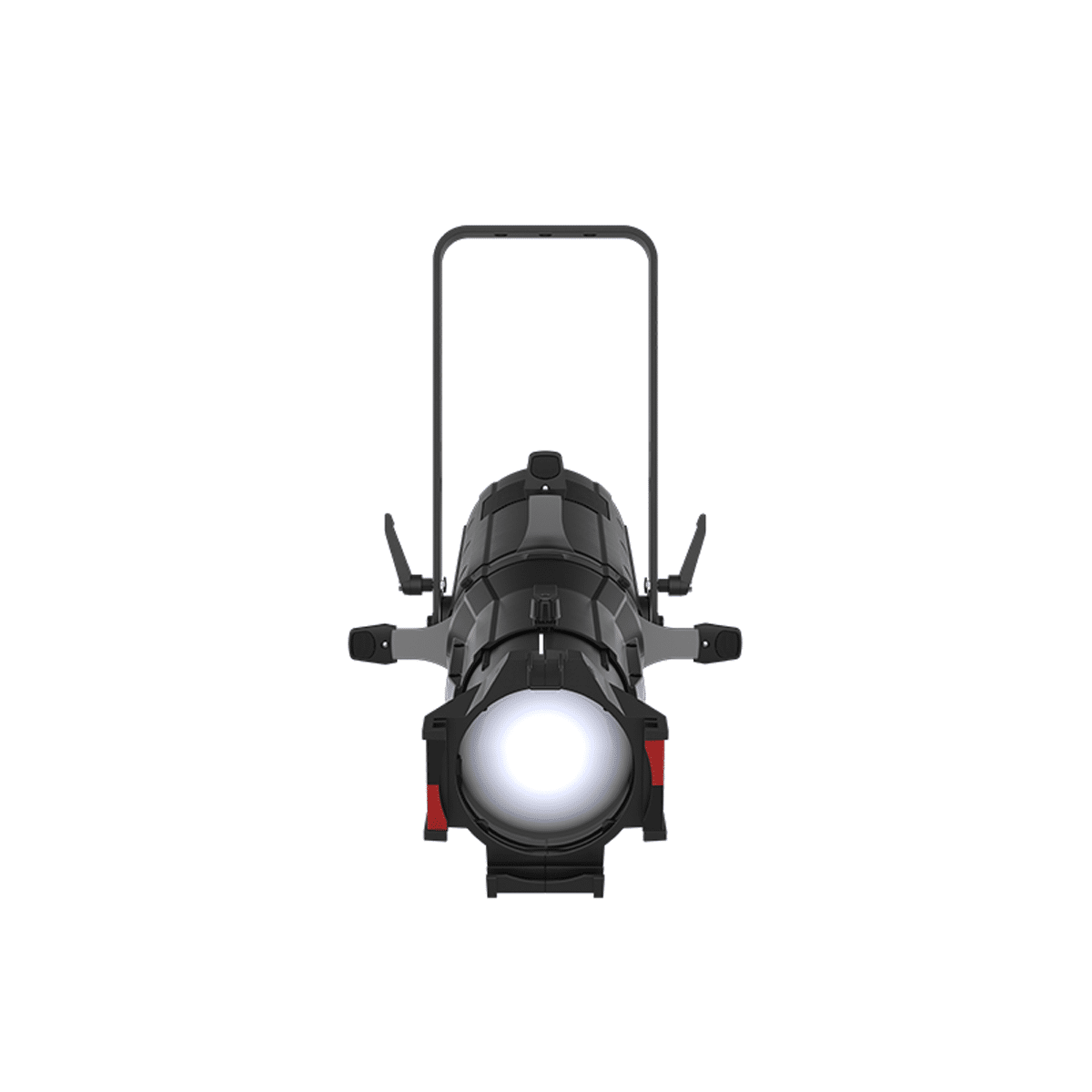

The Chauvet Ovation E-260CW is a cool white LED ellipsoidal (ERS-style) fixture designed for clean, daylight-balanced front light and gobo projection in corporate events, broadcast environments, and stage productions. This fixture uses a single 230W cool white LED engine with DMX control of intensity and is engineered for smooth fades and reliable performance in professional lighting rental systems.

For camera-facing work and color-critical applications, the Ovation E-260CW delivers high color quality with a CRI of 96.5 at 5656K and TM-30-18 scores of Rf 91.5 and Rg 100.0 at 5656K. Dimming is high-resolution and designed for theatrical-style fades, using 16-bit nonlinear scaling with selectable dimming curves that emulate incandescent behavior.

Control options include DMX-512A and RDM support, with multiple DMX personalities, on-board configuration via a 2-line display and 4-button interface, and selectable PWM frequencies for broadcast compatibility. The fixture offers multiple fan modes (Auto, On, Off, Silent) to balance output and acoustic requirements in quiet rooms and recorded environments.

The Ovation E-260CW is designed to work with industry-standard lens tubes (not included) so beam angle can be matched to throw distance and trim height. The housing includes accessory slots for gobo sizes A and B and an iris, enabling clean beam shaping and projection workflows typical of ellipsoidal lighting rentals.

Light engine: 1 x 230W cool white LED
Color quality: CRI 96.5 at 5656K; TM-30-18 Rf 91.5 / Rg 100.0 at 5656K
Dimming: 16-bit with selectable dimming curves; PWM selectable 600 Hz to 25,000 Hz
Control: DMX-512A, RDM; 3- and 5-pin XLR in/thru
Fan modes: Auto, On, Off, Silent (noise not to exceed 37.5 dB @ 1 m)
Power: 100–240V auto-ranging; power in/thru via Neutrik powerCON (requires non-dim power)
Rating: IP20 (dry location)
Size / weight: 19.49 x 11.22 x 19.17 in; approx. 15.4 lb
Lens tubes: compatible with 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°–30° zoom, 25°–50° zoom (rented separately)
